Pressure Spray Dryer for Bacillus

Bacillus Engineering Description:

Bacillus sphaericus is strong in moisturizing and can form the natural material polyglutamic acid with extremely excellent strength to prevent the loss of fertilizer and water. It can inhibit the growth and reproduction of harmful microorganisms such as harmful bacteria, pathogenic bacteria, etc. It can also decompose organic substances, organic sulfides, organic nitrogen, etc. that produce malodorous gases, greatly improving the environment of the premises. In the antibiotic pollution problem is getting more and more serious today, the application of beneficial bacillus research, may be an effective solution to the antibiotic problem.

According to the requirements of the market and customers, our company has improved and developed the special pressure spray dryer for bacillus, which is highly efficient, low-consumption, energy-saving and convenient, and has been greatly appreciated by customers.

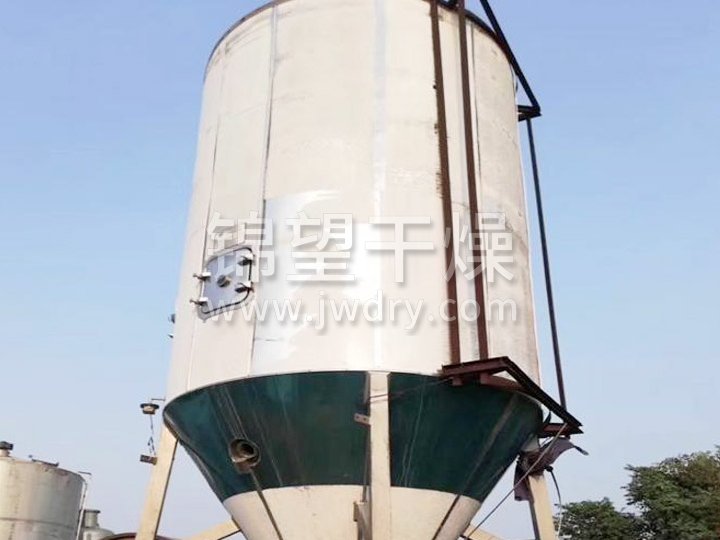

Bacillus sphaericus pressure spray dryer equipment description:

The bacillus material is fed through the diaphragm pump at high pressure, spraying out the mist droplets, dropping down together with the hot air to complete the drying. Most of the dried powder particles are collected by the discharge port at the bottom of the tower, the exhaust gas and its tiny powder are separated by the cyclone separator, the exhaust gas is discharged by the exhaust fan, and the powder is collected by the pollination Jane located at the lower end of the cyclone separator, and the outlet of the fan can be equipped with the secondary dust removing device, which ensures the recovery rate of more than 96-98%.

Bacillus pressure spray dryer equipment features

1, the material is atomized surface area greatly increased, in the hot air stream, more than ten to dozens of seconds to evaporate 95-98% of the water.
2, dry product quality is good, are spherical particles, particle size uniformity, good mobility, good solubility.
3、Equipment is simple and intelligent, simple and stable operation, convenient control, replacement and overhaul.
4、Compared with the traditional airflow dryer, it greatly saves the power consumption.

Pressure spray dryer application scope:

This is a device that can complete drying and granulation at the same time. The pressure, flow rate and size of the spray hole of the material liquid pump can be adjusted according to the process requirements. Because of high recovery rate, no sticky wall, energy saving and high efficiency, especially suitable for heat-sensitive materials drying and other characteristics, pressure spray dryer is widely used in food dyes, intermediates, chemical environmental protection, medicine and building materials and other industries.
Pressure spray dryer and material contact part of the material are made of SUS304, steam heating or electric heating, with easy operation, fast start, clean and clean hot air and other advantages.
Welcome new and old customers to call us for consultation and visit us for test!
